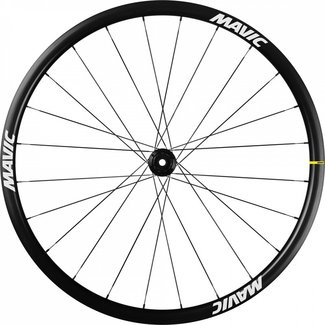

MAVIC MAVIC Rear Wheel Crossmax SL Ultimate 30Mm 29

Weight :

• 1380 grams (Pair 29")
• 625 grams (Rear 29")
• 755 grams (Rear 29")

KEY BENEFITS

Fly up climbs and accelerate faster

New carbon Adaptive layup technology shaves 70g per rim. 25mm wide rim weighs only 340g.

Stiff and smooth ride quality

Special carbon rim layup for superior rim stiffness and added control on descent. Double-butted, two-cross spoke pattern for enhanced vertical compliance.

Efficient power transfer

New lighter Infinity hub design paired with 24 straight-pull spokes for improved stiffness and better balanced spoke tension.

SPECIFICATIONS

Rims

• Drilling: traditional
• Internal width: 30 mm
• Hookless profile
• ETRTO size 29": 622x30TSS
• Adaptive Layup Carbon technology
• UST Tubeless Ready

Spokes

• Material: steel
• Shape: straight pull, flat, double butted
• Nipples: aluminum, ABS
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Hub available with 6-bolt or Center Lock® brake rotors
• Axles: Front 15X110 Boost ; Rear 12X148 Boost
• Infinity hubs
• Instant Drive 360 freewheel technology
• QRM Auto bearing preload technology

Versions

• Disc standard : 6 Bolts or Center Lock®
• Hub width : Boost only (front 110, rear 148)
• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Compatibility

• Rear axle: 12x148 Boost thru axle
• Front axle: 15x110 Boost thru axle
• Compatible Adapters and freewheel bodies
• Boost : Torque Caps (LV2374400)
• ID360 Shimano HG9 alloy freewheel body (LV3780100)
• ID360 Shimano Micro Spline alloy freewheel body (LV3990100)ID360 Sra
• m XD freewheel body (LV3740100)

Intended use

• ASTM CATEGORY 3 : CROSS COUNTRY
  For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
• Recommended tire sizes: 50mm to 76mm (2.0" to 3.0")

Delivered with

• UST valve and accessories
• Pre-installed tubeless rim tape
• Multifonction adjustment wrench (delivered with rear wheel)
• Wheelbag
• 2 replacement spokes with each wheel
