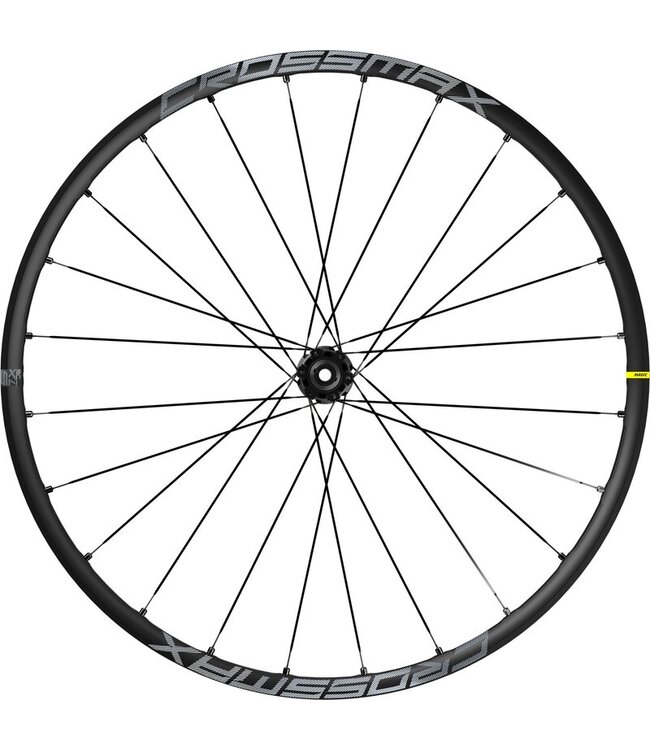

MAVIC MAVIC Rear Wheel Crossmax XL S 29'' IS XD

Key Benefits

Best in its class alloy Trail wheelset

Super strong rim with ISM machining minimizes weight without compromising strength.

More confidence and control on rugged trails

30mm wide rim is optimized for lower tire pressure, giving you a smoother ride with more traction and control. Triangular rim shape absorbs heavy impacts so you're free to bomb the descents.

Most user-friendly tubeless system

Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and the durability of the rim.

• 1790 grams (Pair 29")
• 830 grams (Front 29")
• 960 grams (Rear 29")

Specifications

Rims

• Material: Maxtal
• Material: S6000 Aluminum
• Weight reduction: ISM
• Tire: UST Tubeless and tubetype
• Internal width: 30 mm
• Black Shield treatment (protects your rim against impacts and scratches)
• ETRTO size 29: 622x30TC
• Asymmetrical rim design
• Drilling : Fore tapeless tubeless technology
• Joint: SUP welding technology

Spokes

• Material: steel
• Nipples: Fore integrated aluminum
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

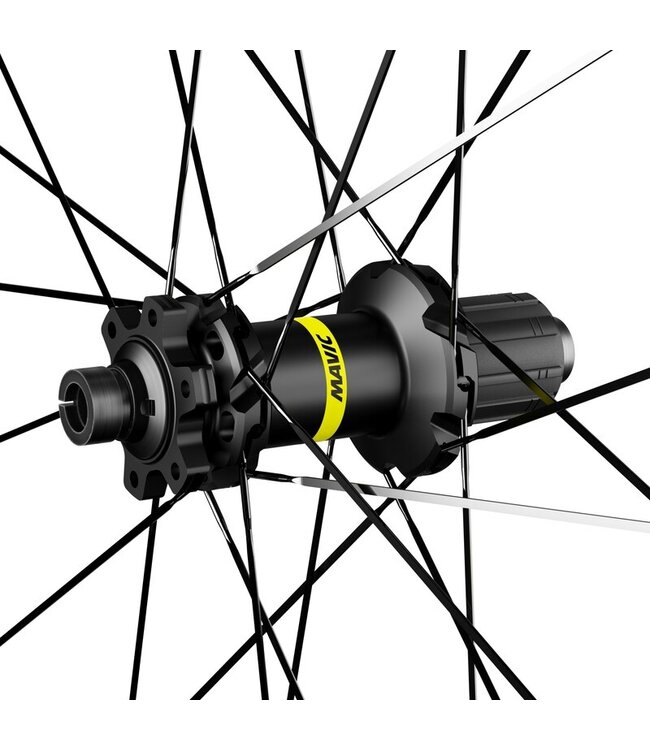

Hubs

• QRM Auto bearing preload technology
• Instant Drive 360 freewheel technology
• Axles: Front 15/20X110 Boost ; Rear 12X148 Boost
• Hub available with 6-bolt or Center Lock® brake rotors
• Infinity hub design

Versions

• Disc standard : 6 Bolts or Center Lock®
• Hub width : Boost only (front 110, rear 148)
• Freewheel: SRAM XD, Shimano HG9,
• Shimano Micro-Spline
• Diameter: 29'' only

Delivered with

• UST valve and accessories
• Multifonction adjustment wrench (delivered with rear wheel)
• 2 replacement spokes with each wheel
• Fore adjustment wrench

Compatibility

• Freewheel: Shimano HG9, XD or Micro Spline
• Front axle: 15x110 Boost thru axle
• Rear axle: 12x148 Boost thru axle

Intended use

• ASTM CATEGORY 4 : ENDURO AND TRAIL RIDING
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
• Maximum tyre pressure: 2.95bar/43PSI with a 52mm tyre - 1.55bar/22PSI with a 125mm tyre
• Recommended tire sizes: 60mm to 76mm (2.35 to 3.0)
